Description

PCB copperplating machine is waiting for you.

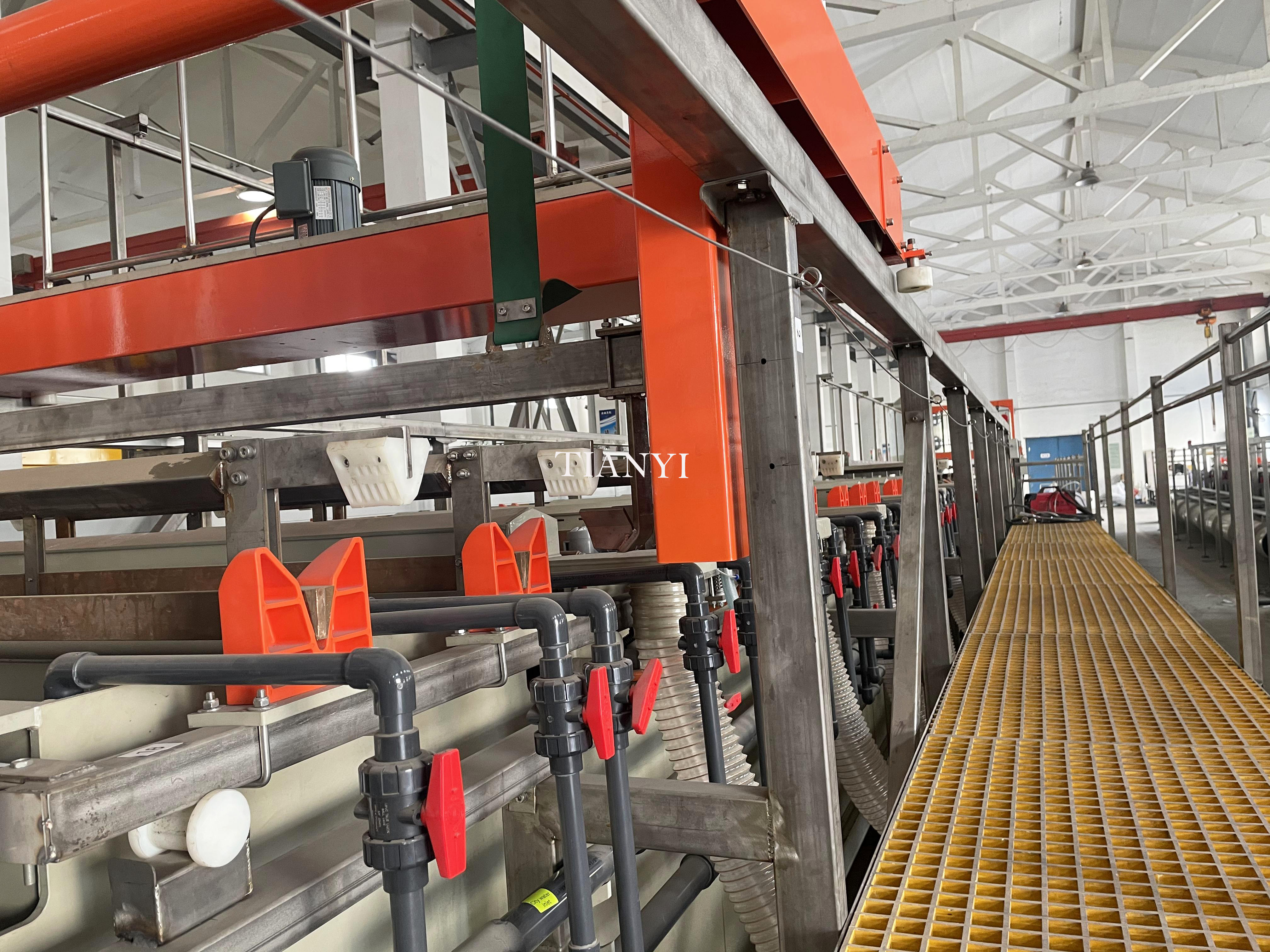

PCB copper plating machine is suitable for both first copper (via filling) and pattern copper plating processes(surface build-up). It is an automated line that uses electrolytic copper baths, rectifiers, filters, and agitation systems to deposit uniform copper layers on PCB surfaces and through holes.

Machine Construction:

  1. Frame: Made of SS 304 stainless steel for strength and corrosion resistance.
  2. Tanks: PP material (12mm/15mm/20mm thick) with tube reinforcement for extra durability.
  3. Oscillation System: Ensures even processing and better chemical exchange.
  4. Air Agitation System: Provides uniform solution circulation and stable operation.
  5. Transport System: Two set PLC-controlled transporters for precise and automatic movement.
No items found.

Specifications

Copperplating machine process includes Loading → Soak → Film stripping → Recycle washing (1/2/3) → DI water rinsing 1 → Squeezing → Inspection →Vacuum Etching → Recycle washing (4/5/6) → DI water rinsing 2 → Squeezing → Inspection → Tin stripping → Recyclewashing(7/8/9) → DI water rinsing → Squeezing → Cold blower → Hot air drying → Unloading

Dimension L15,160xW2750xH4000MM

Tanks dimension L1800xW860xH1180 mm

Copper heating/cooling Electric heating with cooling coil

Copper process time 60-75minuts

Total power consumption 95KW

Guarantee 1year

Optional Rectifier, Filter, Auto regeneration system; Coolingchiller; waste gas scrubber(acid fume treatment)

Size chart
How long is machine guarantee time?

All non-consumableparts are covered by a one-year warranty. Any defect under normal operationwill be replaced free of charge, excluding damage caused by misuse or naturaldisasters.

Why choose us?

1). With more than25 years of experience serving multiple industries, we can design equipmentthat best meets your needs.
2). Allmanufacturing processes are carried out in our own factory, ensuring bettercost control and more competitive equipment prices.
3). We aim forlong-term cooperation and focus on providing reliable, high-quality machines toensure excellent performance in your actual production.

Do youprovide installation service?

Definitely. Wehave a professional overseas installation team, typically consisting of onetranslator, two mechanical engineers, and one electrical engineer. Toaccelerate the overall installation and commissioning process, local laborsupport from your side is required.

Where are you located? How to visit us?

Warmly welcome tovisit us
Our address: No.123, Hanjiang West Road, Xuejia Town, Changzhou, Jiangsu, China.
If you arearriving from Shanghai, please take the high-speed train from Shanghai HongqiaoStation to Changzhou North Station — the journey takes about one hour. We willarrange to pick you up upon arrival.If you are comingfrom another city in China (such as Shenzhen or Guangzhou), you may take adirect flight to Changzhou Benniu International Airport.
Before your visit,please kindly contact me in advance so I can suggest the most convenient traveloption.
For any inquiries,feel free to reach me directly via WeChat/WhatsApp or email (as shown in thevideo).
