Manual chrome plating machine is waiting for you.

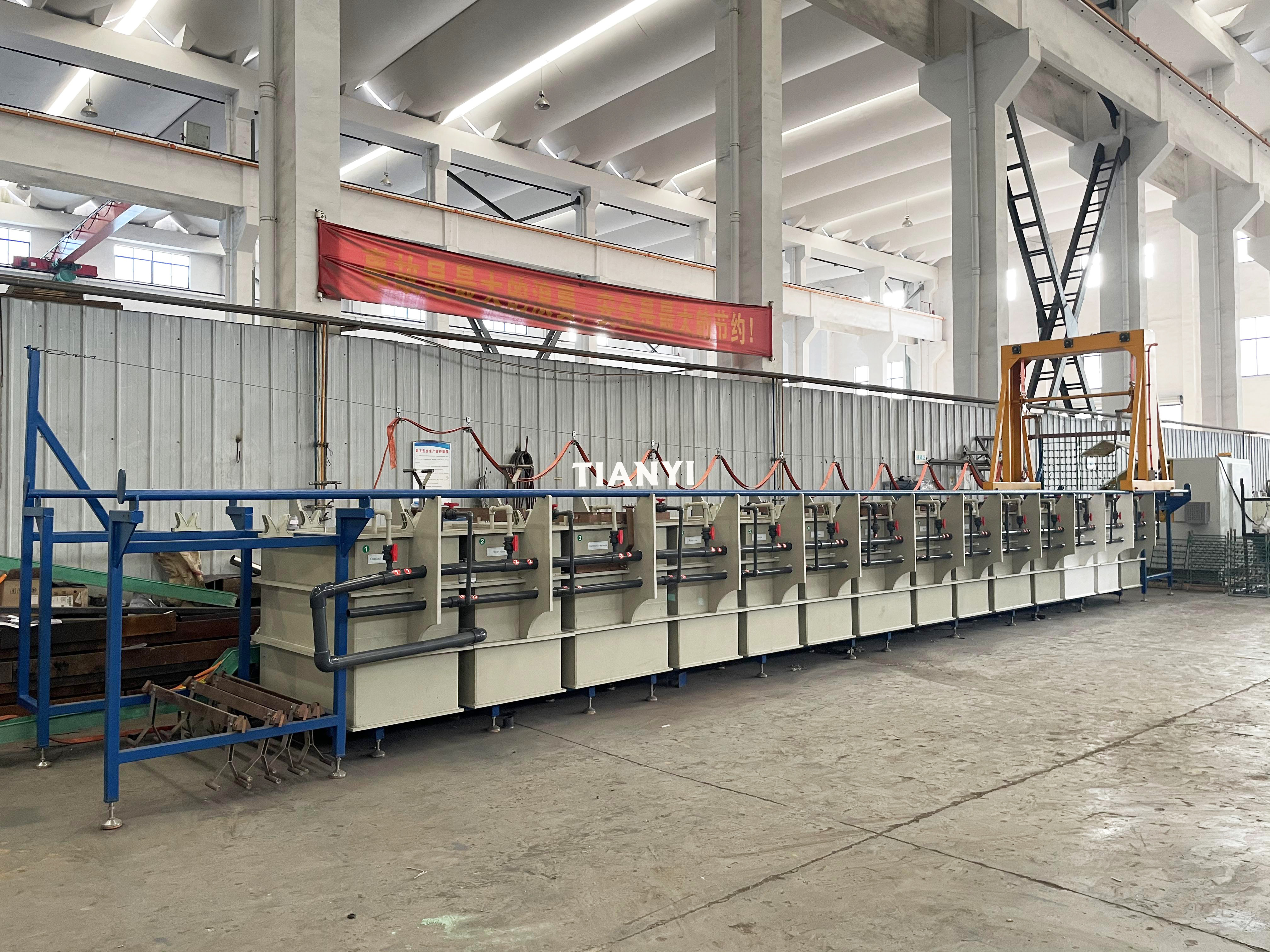

Manual chrome plating machine designed for small to medium productionrequirements. The workpiece is manually moved left and right by the operator toreach different process tanks, while the lifting (up/down) motion is driven byan electric motor for stable and controlled immersion. This hybridmanual–semi-automatic system reduces equipment complexity, saves floor space,and offers an economical solution compared to fully automatic plating lines.

In briefly, chrome plating machine is divided into 5 big steps:pre-treatment, copper plating, Nickel plating, Chrome plating andpost-treatment.

Pre-treatment: Includes soak cleaning, electro-cleaning, acidactivation, etc.
Plating: Once the surface is properly activated, chromium is deposited throughelectroplating.
Post-treatment: Rinsing, neutralizing, drying, and inspection.

‍

Machine Construction:

1. Frame:Made of Q235 80x80x3.0t square tube, with anti-corrosion primer plus outerpowder coating to enhance durability and corrosion resistance.

2. Tanks:PP material ( 15mm / 20mm/ 25mm thick) with reinforced structure for extrachemical resistance and mechanical strength.

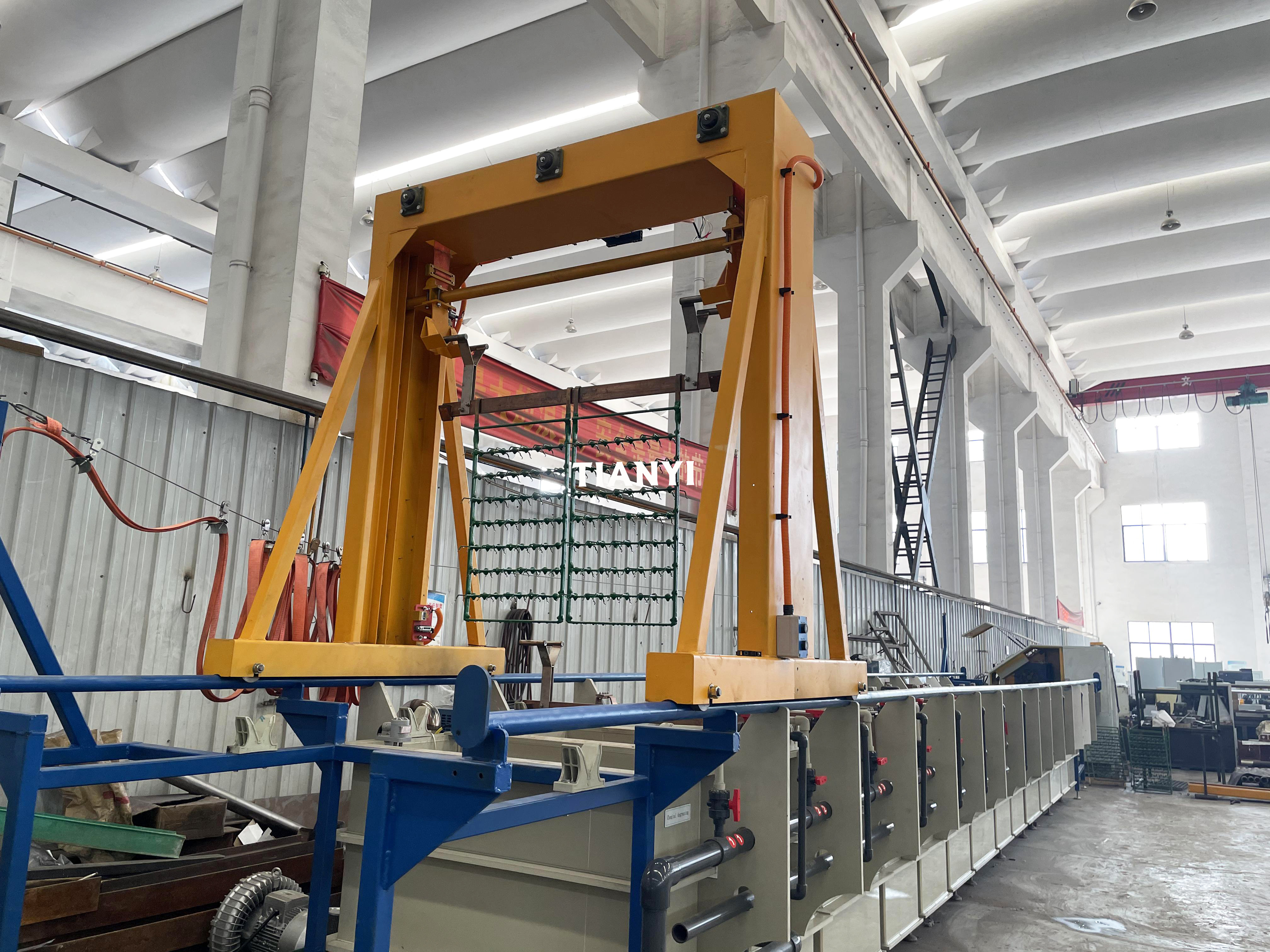

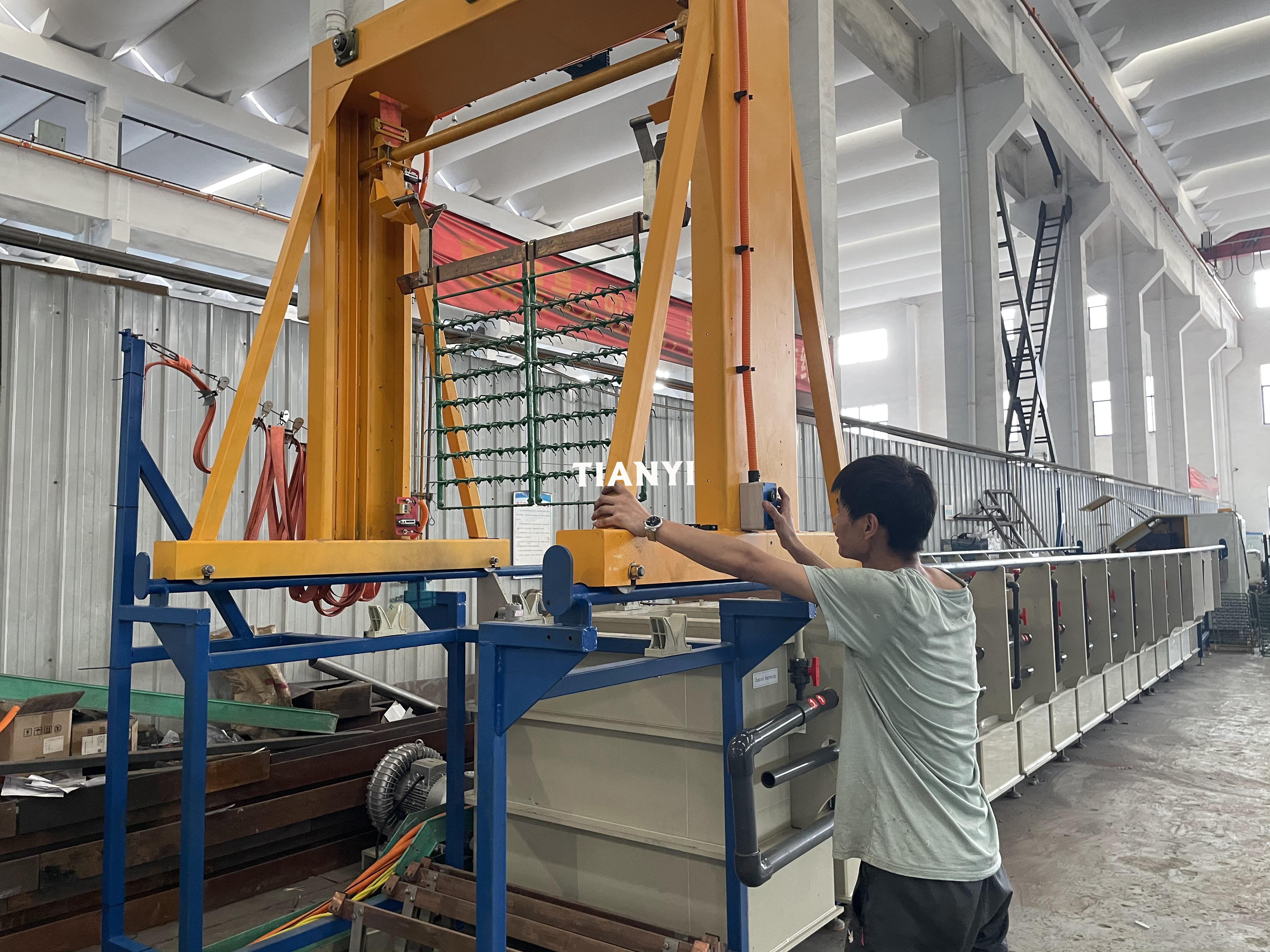

3. Transport System:Equipped with 1SET transporters, upon and down by motor; left and right sidemoving by hand.

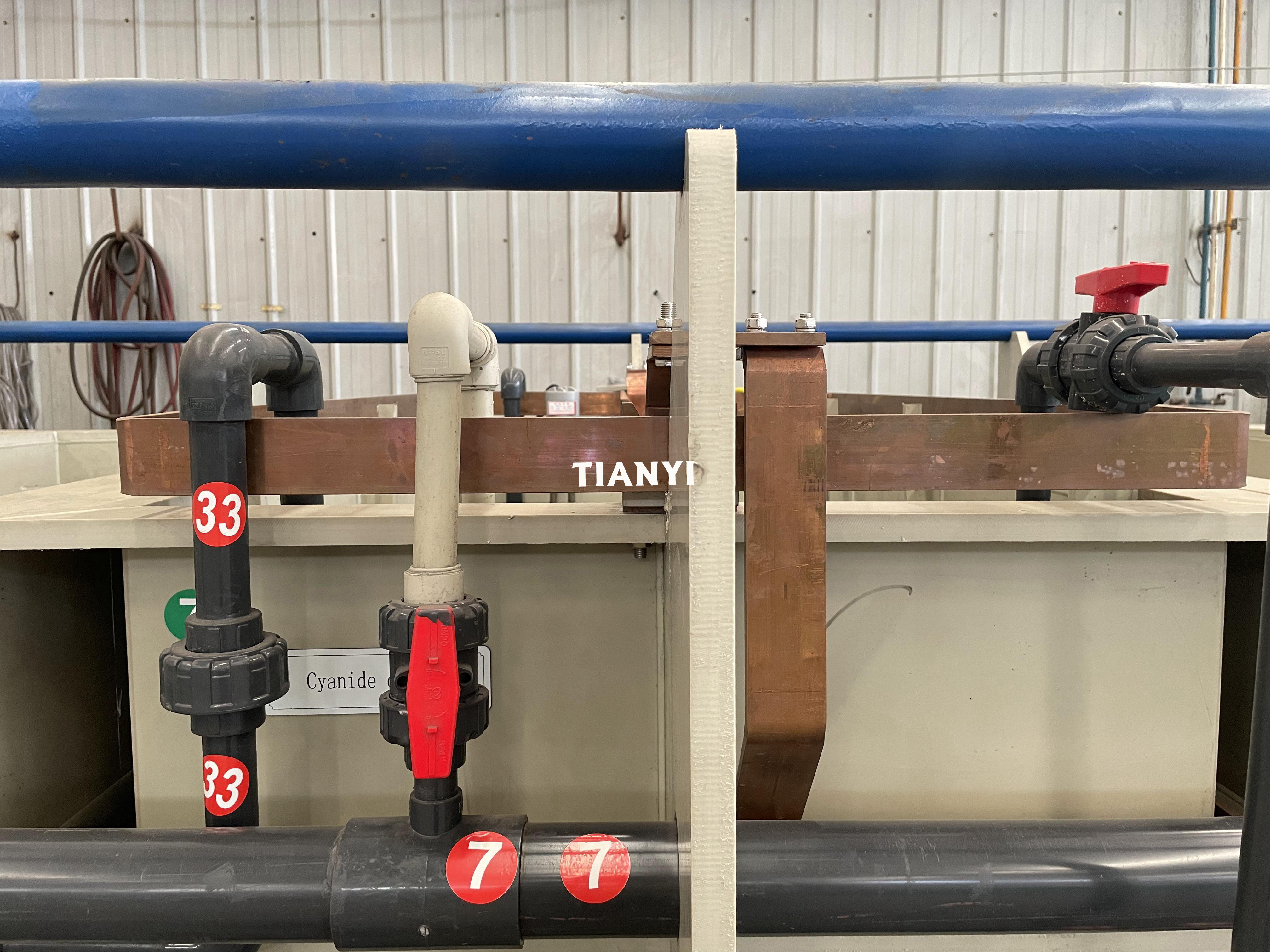

4. Air Agitation / Solution Circulation System:Ensures uniform electrolyte flow distribution in plating tanks for stableplating thickness and quality.

5. Heating System:Electric heating options are available depending on customer requirement,providing efficient temperature control and energy-saving performance.

6. Rinsing System:Multi-stage spray and immersion rinsing combination. Spray rinsing can beautomatically activated by workpiece lifting action via solenoid valves,reducing water consumption while improving rinsing quality.
