Description

Anodizing machine is waiting for you.

In briefly, anodizing machine divided into 2 big steps: Pre- treatment and post treatment.

Pre-treatment: Include Soak cleaning, caustic etching, DEOX, etc. Anodizing: once the surface is prepared, the oxidation film is built. Post treatment: coloring, sealing and drying.

Machine Construction:

1. Frame: Made of Q235 100x100x4.0t square tube, surface is coated with an anti-corrosion primer and an outer powder coating for enhanced durability and protection. U shape design, length saving.

2. Tanks: PP material (12mm/15mm/20mm thick) with tube reinforcement for extra durability.

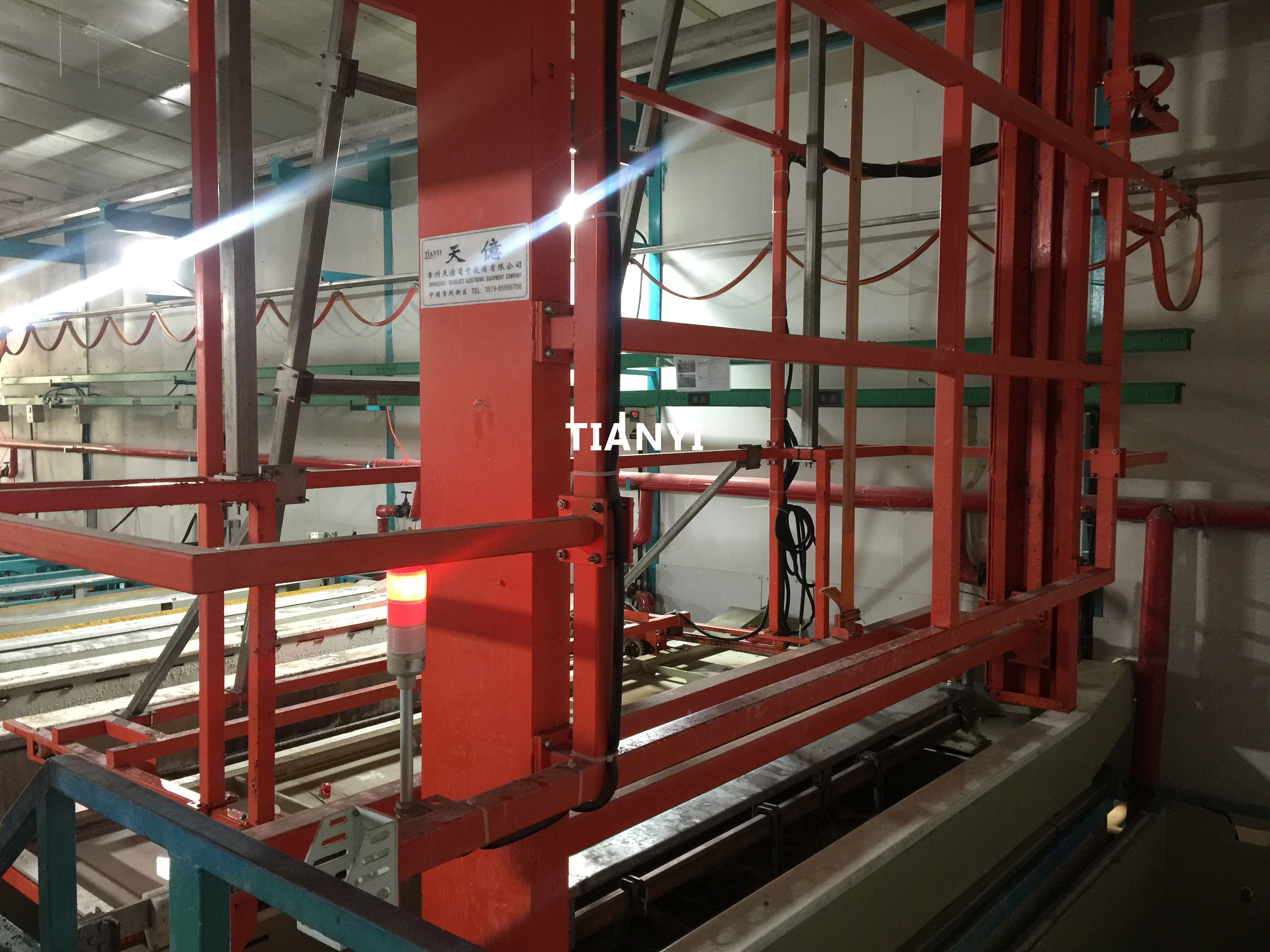

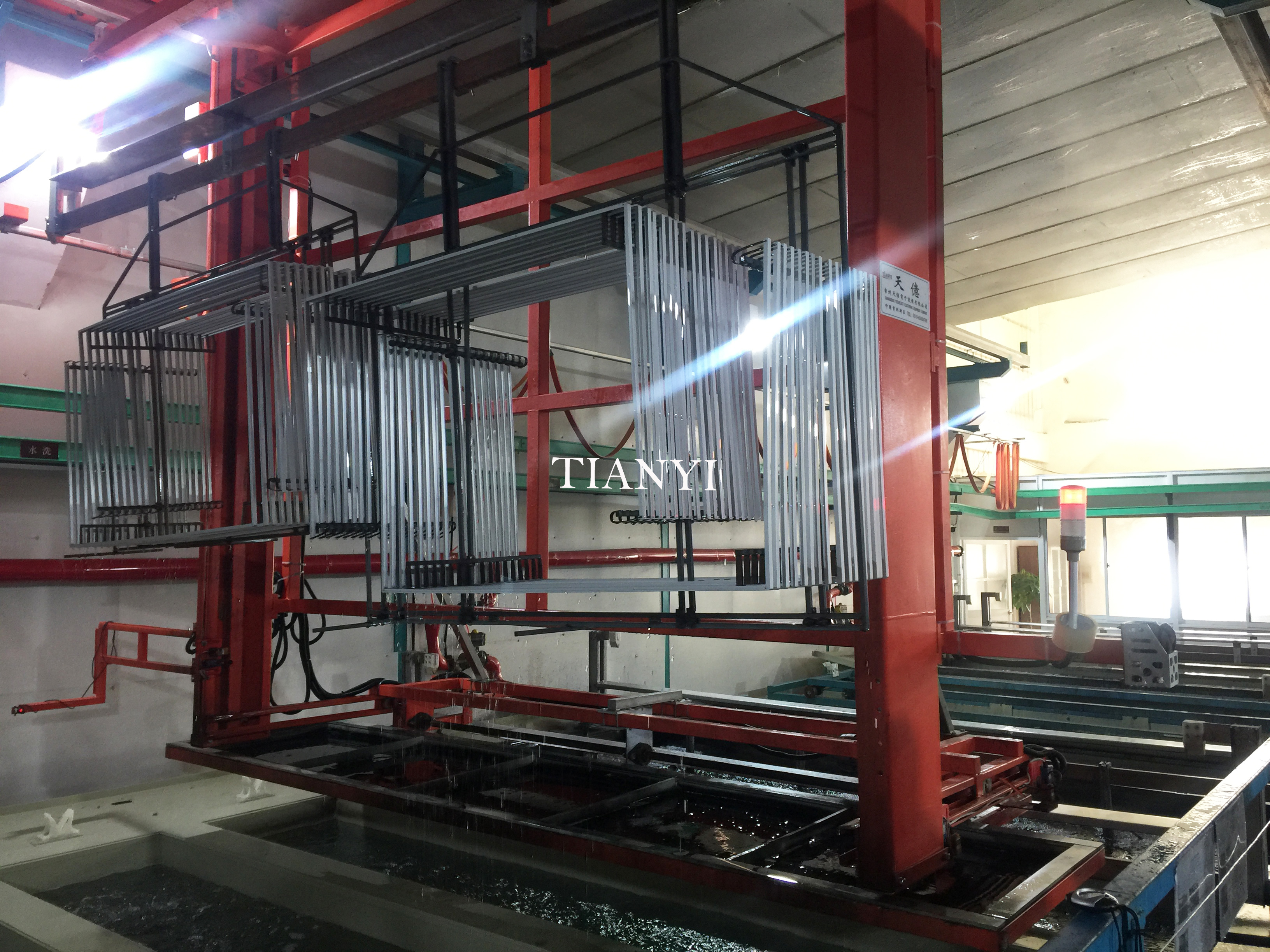

3. Transport System: Two set PLC-controlled transporters for precise and automatic movement.

4. Air Agitation System: Provides uniform solution circulation and stable operation.

5. Steam Heating System: Working in concert with the boiler to deliver optimal energy conservation and economic performance.

6. Spray Rinsing System: Automatically activated by the work piece lifting motion via a solenoid valve. This ensures targeted rinsing for superior cleaning while minimizing water consumption.

No items found.

Specifications

Anodizing plating machine process include Anodizing plating machine process includes: Loading → Soak cleaning → Spray rinse → Caustic etching → Spray rinse → DEOX → Rinse1/2 → Anodizing → Rinse1/2 → Coloring1 → Spray rinse → Coloring2 → Spray rinse → Coloring3 → Spray rinse → Rinse1/2 → Sealing → Rinse1/2 → Hot water rinse → Hot dryer → Unloading

Dimension L54,250xW12,000xH5500MM

Tanks dimension L4300xW800xH2500 mm

Anodizing heating/cooling Steam heating with cooling coil

Anodizing process time 20-45minuts

Total power consumption 230KW

Guarantee 1year

Optional Filter, Rectifier, Auto regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)

Size chart
How long is machine guarantee time?

All non-consumableparts are covered by a one-year warranty. Any defect under normal operationwill be replaced free of charge, excluding damage caused by misuse or naturaldisasters.

Why choose us?

1). With more than25 years of experience serving multiple industries, we can design equipmentthat best meets your needs.
2). Allmanufacturing processes are carried out in our own factory, ensuring bettercost control and more competitive equipment prices.
3). We aim forlong-term cooperation and focus on providing reliable, high-quality machines toensure excellent performance in your actual production.

Do youprovide installation service?

Definitely. Wehave a professional overseas installation team, typically consisting of onetranslator, two mechanical engineers, and one electrical engineer. Toaccelerate the overall installation and commissioning process, local laborsupport from your side is required.

Where are you located? How to visit us?

Warmly welcome tovisit us
Our address: No.123, Hanjiang West Road, Xuejia Town, Changzhou, Jiangsu, China.
If you arearriving from Shanghai, please take the high-speed train from Shanghai HongqiaoStation to Changzhou North Station — the journey takes about one hour. We willarrange to pick you up upon arrival.If you are comingfrom another city in China (such as Shenzhen or Guangzhou), you may take adirect flight to Changzhou Benniu International Airport.
Before your visit,please kindly contact me in advance so I can suggest the most convenient traveloption.
For any inquiries,feel free to reach me directly via WeChat/WhatsApp or email (as shown in thevideo).
