Description
Anodizing machine is waiting for you.
In briefly, anodizing machine divided into 2 big steps: Pre- treatment and post treatment.
Pre-treatment: Include Soak cleaning, caustic etching, DEOX, etc. Anodizing: once the surface is prepared, the oxidation film is built. Post treatment: coloring, sealing and drying.

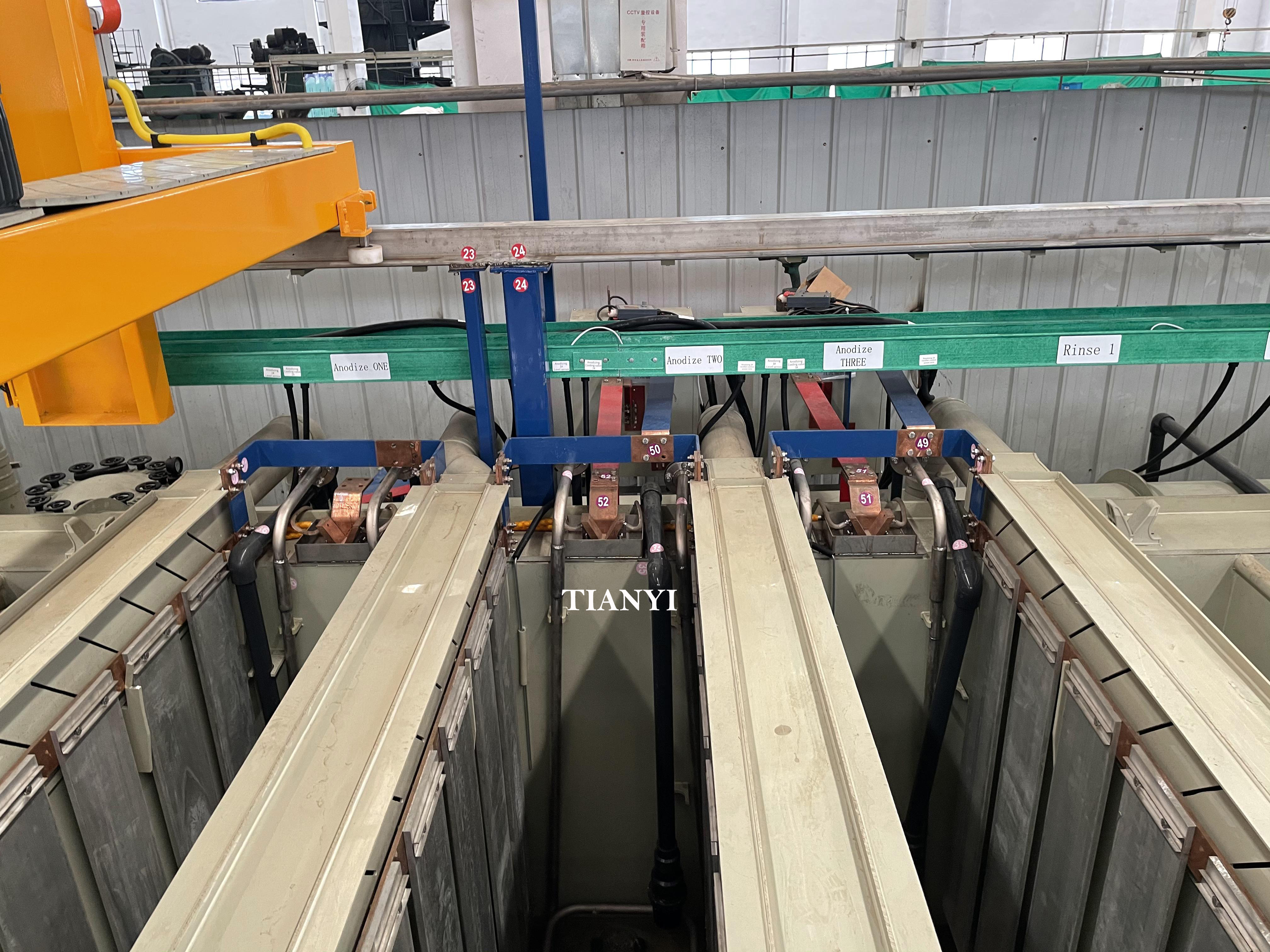

Machine Construction:
1. Frame: Made of Q235 100x100x4.0t square tube, surface is coated with an anti-corrosion primer and an outer powder coating for enhanced durability and protection.
2. Tanks: PP material (12mm/15mm/20mm thick) with tube reinforcement for extra durability.
3. Transport System: Two set PLC-controlled transporters for precise and automatic movement.
4. Air Agitation System: Provides uniform solution circulation and stable operation.
5. Steam Heating System: Working in concert with the boiler to deliver optimal energy conservation and economic performance.
6. Spray Rinsing System: Automatically activated by the work piece lifting motion via a solenoid valve. This ensures targeted rinsing for superior cleaning while minimizing water consumption.
Specifications
Zinc plating machine process includes Loading → Degreasing → Water rinse1/2 → Acid pickling → Water rinse1/2 → Zinc plating → Water rinse1/2 → Passivation → Water rinse1/2 → Hot water rinse → Drying oven
Dimension L25,300xW4,500xH4500MM
Tanks dimension L1500xW1000xH1500 mm
Zinc heating/cooling Steam heating with cooling coil
Zinc process time 20-60minuts
Total power consumption 150KW
Guarantee 1year
Optional Filter, Rectifier, Auto regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
